Jayron JR-HM002 AC 110-250V Snap in Mechanical Hour Meter for AC Powered Equipment such as Golf Carts,Generator,ATV,Lawn Mower,Floor Care Equipment,and Any Other Battery Powered Equipment(AC 110-250V)

Price: £20.12
(as of May 07, 2026 15:13:53 UTC – Details)

Product Description

NInE-ROnG has focused on product development and manufacturing in the fields of hour meter, battery indicator, multi-function meter，service for the garden machinery industry, outdoor power vehicle equipment, transportation vehicles.In addition, we are also committed to creating simple and practical day timers, night light, hygrometers and other products to add fun and security to our life.

Others Serrated design on the side of the product holds the mounting bracket better. The mounting bracket is movable and can be removed from the product.

Product Function

Mechanical Hour Meter
Two sizes available: HM002 AC 110-250V or HM002 DC 6-80V. The total running time of the display engine will be displayed and remain visible. The timing mode is increment counting, the initial value is 0, and the maximum value is 99999.9H. TOT is can not reset.If it exceeds the max value, it will be cleared automatically.

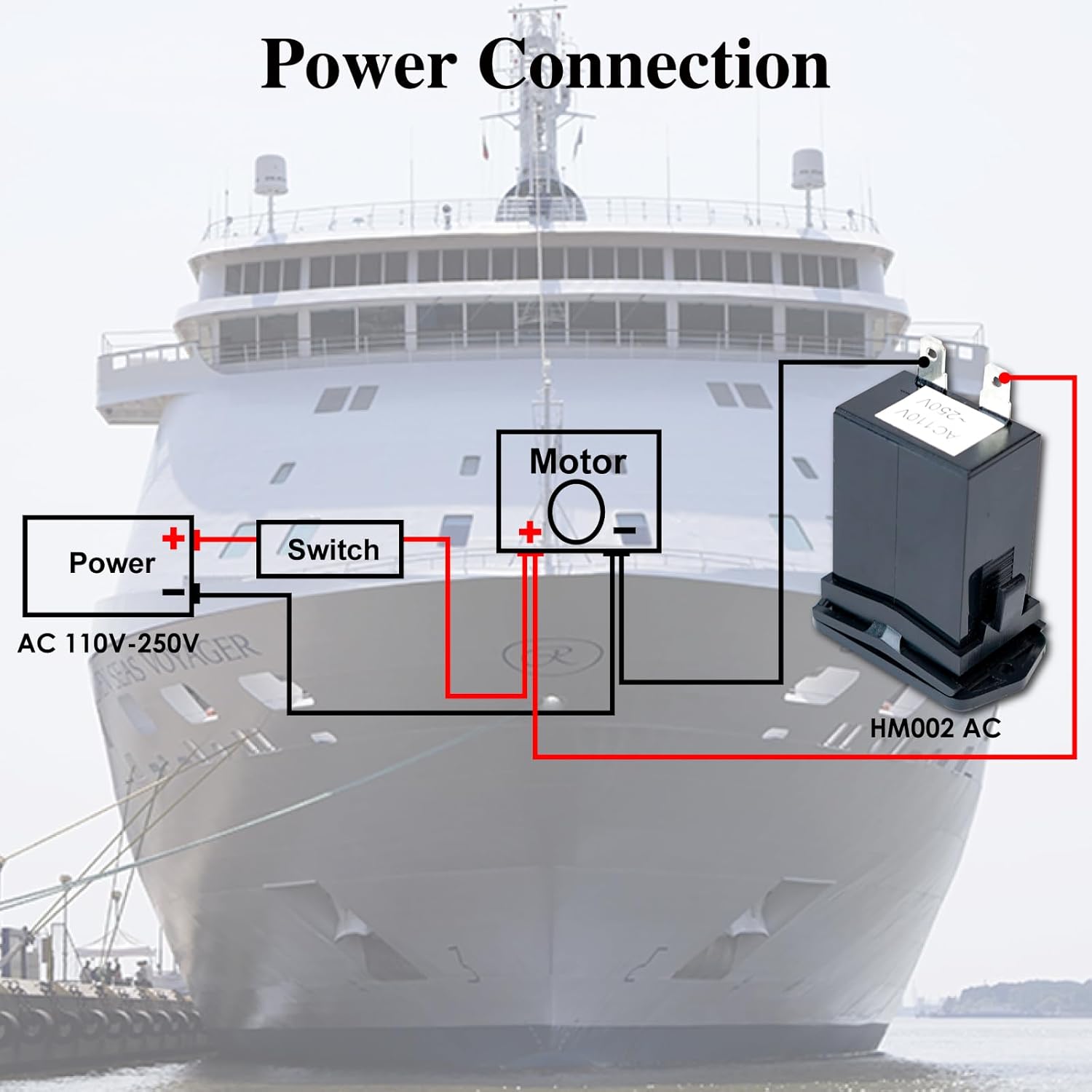

Power Connection

Installation&Application

Performance Test

Yellow resistance testing It can keep good working condition from simulative strong UV ray lightening.It also pass another considerate test for each functions sections and attached accessories.

Drop test Has good shock resistance and protection.

High & Low temperature test It works well at temperatures from -40 °C to +70 °C.

Specifications

Product NR-HM002 Specification HM002 AC 110-250V or HM002 DC 6-80V selectable Power supply type Externally powered Timing range 0-99999.9H Timing accuracy 0.1H Display size 29*5mm(1.14*0.19in) Product size 55*31.7*71.7mm(2.16*1.24* 2.82in) Housing material ABS Product weight 46g

Mechanical hour meter diamond, no battery, long service life.
Works on 110-250V AC Battery Powered Equipment.
Max value: 99999.9 hours,0.1 accuracy.Automatic recycle to zero exceeds the max value.
Snap in installation,save time and effort,tool-less.
CE certification, we provide two-year warranty in addition.
